$79.95
$93.00

Overview

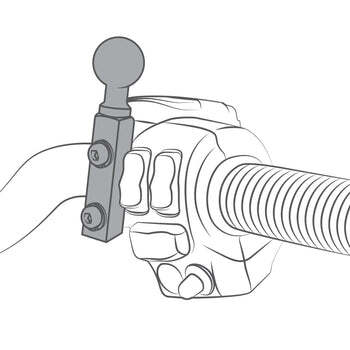

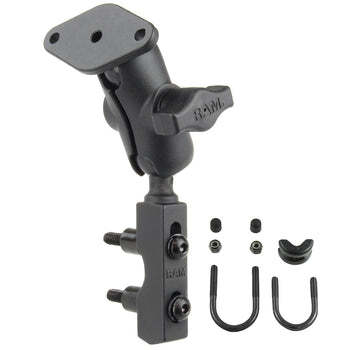

The RAM-B-174U-A consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, short length double socket arm and diamond plate for mounting to RAM device cradles or anything with an AMPs hole pattern.

The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.

Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows you to move the mount to your optimum viewing position.

Additional Information

SKU ram-b-174u-a
Barcode # 793442952623

HARDWARE INCLUDED

(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE

.5" - 1.25" diameter

SOCKET TO SOCKET LENGTH

1.75"

HOLE PATTERN

2-Hole AMPS: 1.912"

BALL SIZE

B Size (1")

Compatibility

  • eTrex Legend HCx
  • eTrex Vista HCx
  • GPSMAP 60C
  • GPSMAP 60CSX
  • GPSMAP 76CSx
  • Montana 700
  • Montana 700i
  • Montana 750i
  • nuvi 1300
  • nuvi 1450
  • nuvi 1490T
  • nuvi 205W
  • nuvi 2455LT
  • nuvi 500
