$66.00
$68.00

Overview

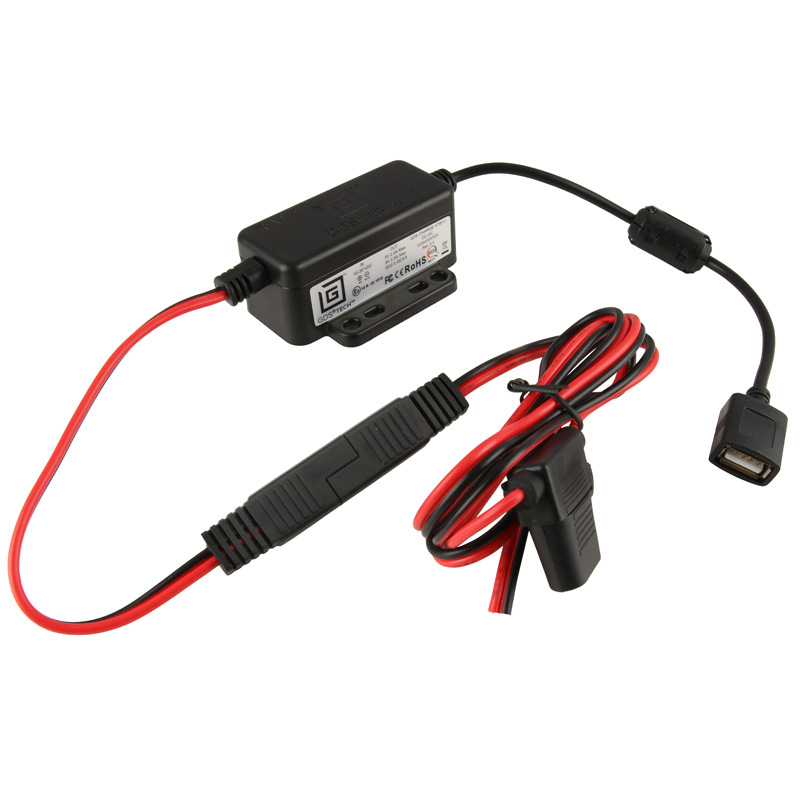

The GDS Modular Hardwire Charger with Female USB Type A Connector is the ideal solution for providing power to any GDS vehicle solution. With the quick disconnect feature, easily connect any USB Type A charging cable.

When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components.

Compatible with any 5V device with a current requirement of 2.5A or less.

This part replaces the previous version (RAM-GDS-CHARGE-V7BU), but now adds a ferrite choke which reduces potential electromagnetic interference (EMI) with other electronics that might not be properly shielded. It also adds UL 62368-1 certification.

Additional Information

SKU RAM-GDS-CHARGE-V7B1U
Barcode # 793442921780
Brand RAM Mounts

input voltage

10-30VDC

output voltage

5-9VDC*

output current

2.5A max

input connector

Female USB Type A

input cable length

1.2 Meters including 2 Pole Flat Marine Connector

output cable length

.2 Meters

operating temperature

-10°C to +70°C

storage temperature

-40°C to +70°C

regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC

certifications

E-Mark Certification
RCM Certification
IEC/UL 62368-1

Warranty

3 year warranty

Weight

0.32 lb

Additional Information

*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
