$167.00

Overview

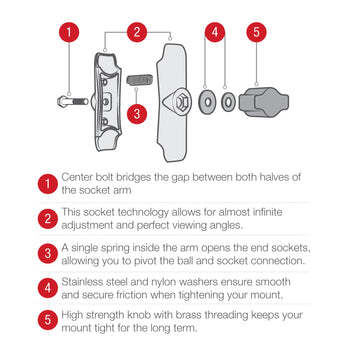

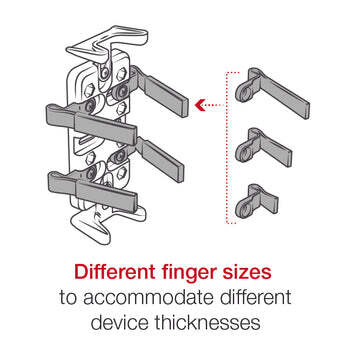

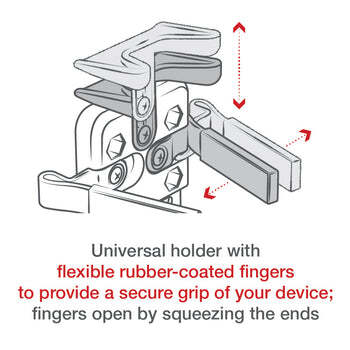

The RAM-B-149Z-2-UN4 consists of a steel strap base, u-bolt bases, double socket arm and universal Finger Grip™ cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

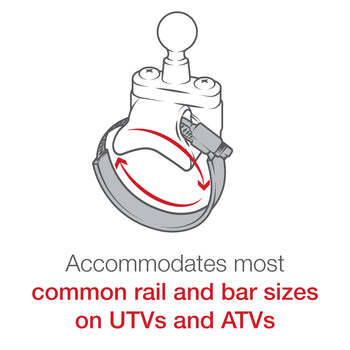

Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware.

Additional Information

SKU ram-b-149z-2-un4
Barcode # 793442905612

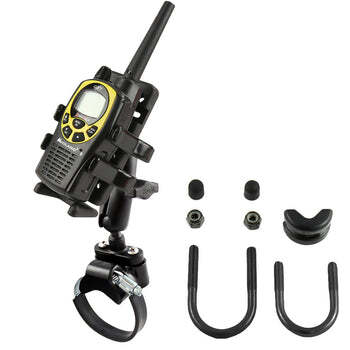

HARDWARE INCLUDED

Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

HOLDER DIMENSIONS

Height Range: 7.25" max (using optional supports)
Width Range: 1.25" - 3.5"
Max Depth: 1.5"

CLAMP RANGE

U-Bolt: .5" - 1.25" diameter
Strap Clamp: 1.57" - 3.15" diameter

SOCKET TO SOCKET LENGTH

3"

BALL SIZE

B Size (1")

Compatibility

  • Alpha 100
  • Astro 900 System
  • Delta Sport XC
  • Delta Upland XC
  • Delta XC
  • eTrex Touch 25
  • eTrex Touch 35
  • eTrex Touch 35t
  • GPSMAP 66 Series
  • inReach Explorer+
  • inReach SE+
  • Montana 700
  • Montana 700i
  • Montana 750
  • Montana 750i
  • PRO Control
  • Sport PRO
  • CT40
