RAM Vibe-Safe Adapter Kit with X-Grip Large Phone Mount to Handlebar U-Bolt Base & Medium Arm Connector UN10
Adding a RAM® Vibe-Safe™ Adapter dampens a wide range of vibration frequencies between your phone or device holder and the mounting base. X-Grip and Handlebar Mount in this example, check your phone compatibility in tab below.
- Spring-loaded X-Grip holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices
- Easily insert and remove your phone with one hand
- RAM® Vibe-Safe™ dampens a wide range of vibration frequencies
- NPT thread connection allows for rotation between portrait and landscape while remaining secure
- Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
- Zinc-coated metal U-bolt base with 1" rubber ball is designed to sit at right angles to mounting rail; includes black cover caps for exposed ends of the U-bolt
Overview

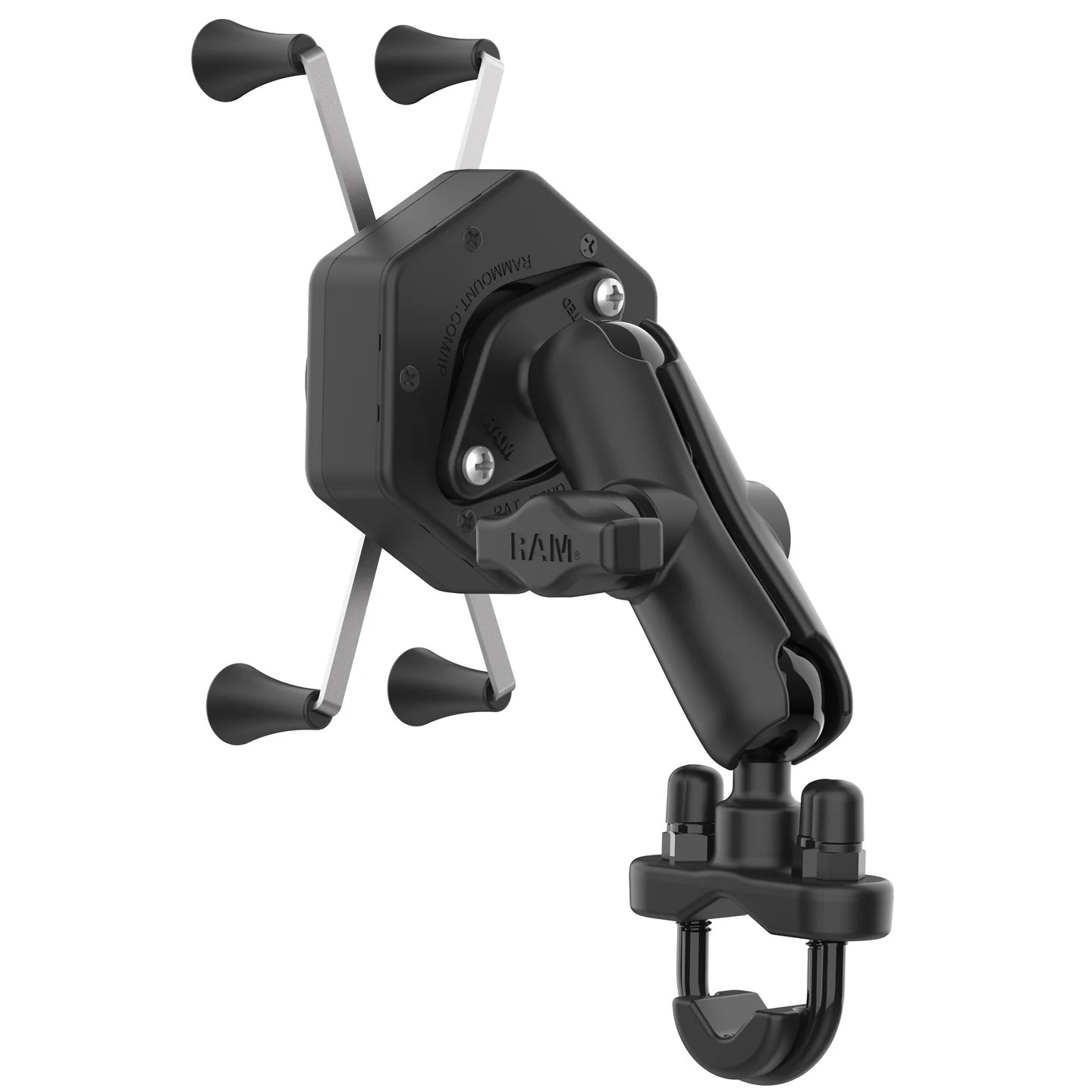

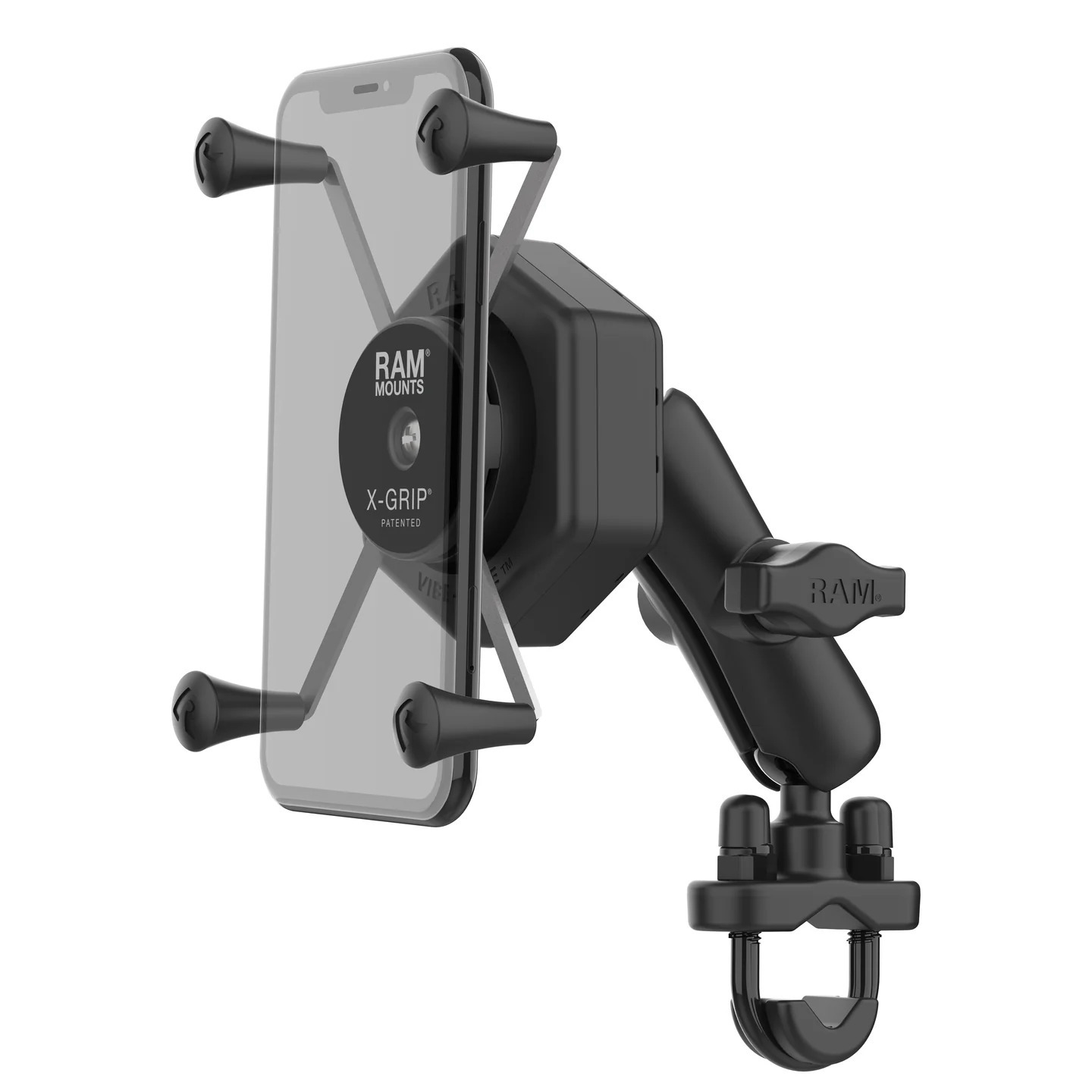

The RAM X-Grip Large Phone Mount with RAM Vibe-Safe & U-Bolt Base - Medium (RAM-B-149Z-UN10-462) is a combination of the RAM X-Grip Large Phone Mount with Handlebar U-Bolt Base and the RAM Vibe-Safe - our vibration damping accessory is designed to protect electronic devices from a wide range of vibration frequencies.

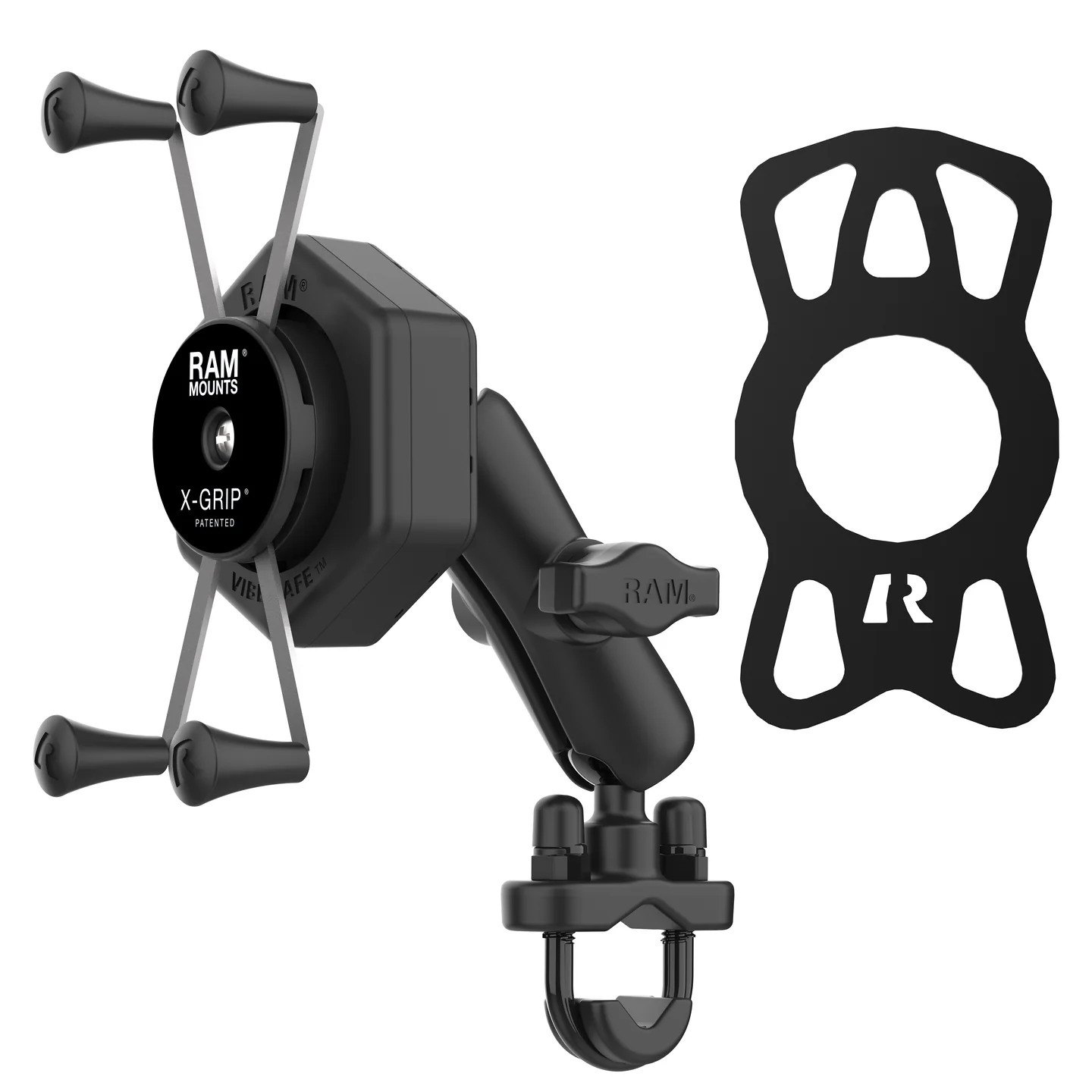

This product comes pre-assembled with the device tether that is recommended for outdoor applications. The RAM X-Grip can rotate between portrait and landscape by loosening the center screw.
This Phone Mount Kit comes with one (1) medium B size arm and one (1) RAM U-Bolt Base that accommodates rails from .5" - 1.25" in diameter and an optional device tether that is recommended for outdoor applications. The holder is compatible with handheld devices that will fit the dimensions listed below, it is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Additional Information
| SKU | RAM-B-149Z-UN10-462 |
| Barcode # | 793442017896 |
| Brand | RAM Mounts |
A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted in the RAM® Vibe-Safe™. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer or other device.

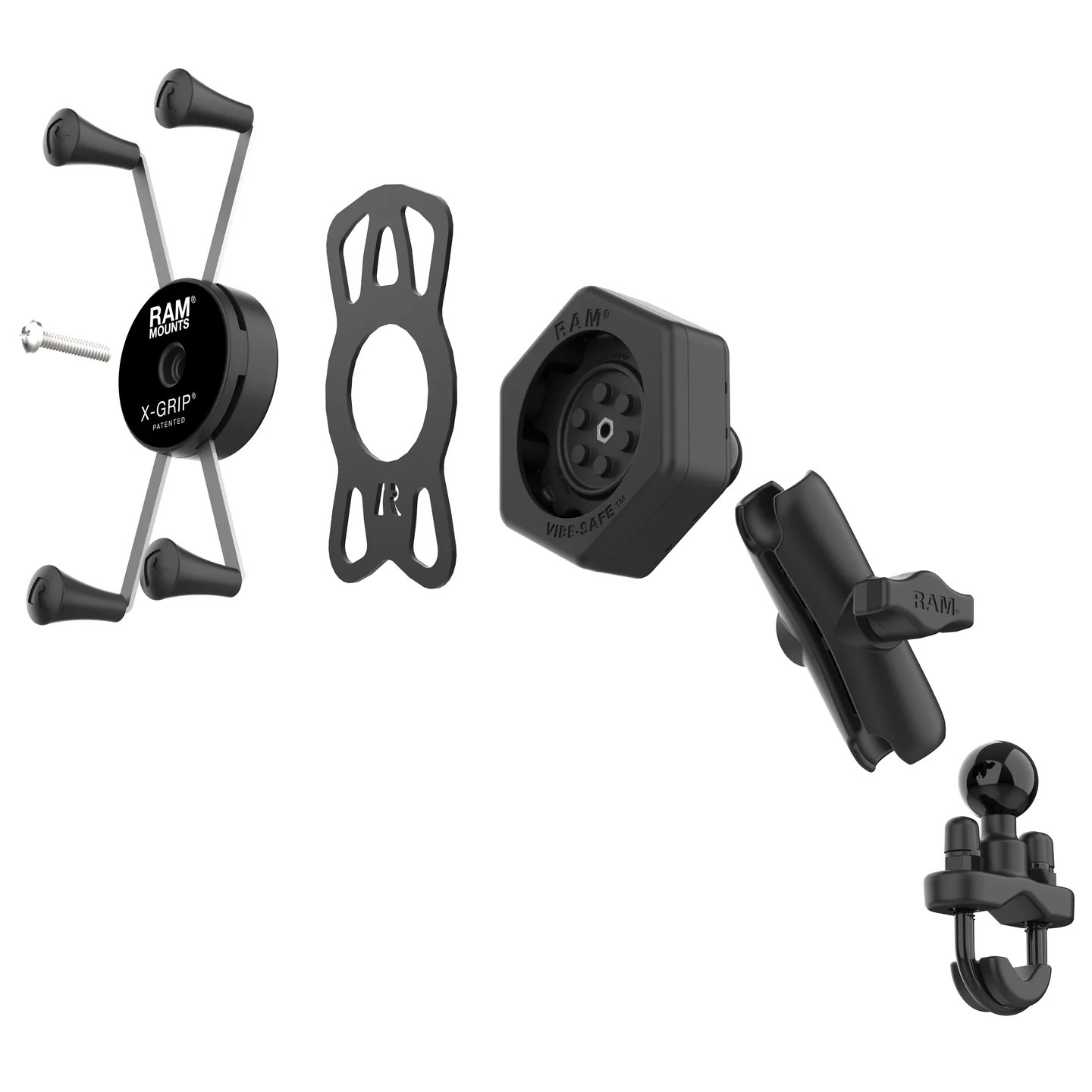

HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Width Range: 1.75" - 4.5"
Depth Range: .875" max
CLAMP RANGE
.5" - 1.25" diameter
SOCKET TO SOCKET LENGTH
3"
BALL SIZE
B Size (1")
Compatibility
- iPhone 6s Plus
- iPhone 7 Plus
- iPhone 8 Plus
- iPhone Xs Max
- iPhone 11 Pro Max
- iPhone 12 Pro Max
- iPhone 13 Pro Max
- iPhone 14 Plus
- iPhone 14 Pro Max
- iPhone 15
- iPhone 15 Plus
- iPhone 15 Pro Max
- Evolve X
- BV9900
- BV9900 Pro
- S42
- S62
- S62 Pro
- Drive 50
- Drive 51 LM
- Drive 52
- Drive 61 LM
- DriveSmart 51 LMT-S
- DriveSmart 61 LMT-S
- DriveTrack 71
- Nuvi 2788LM
- RV 660LMT
- RV 770 LMT-S
- Pixel 2 XL
- Pixel 3 XL
- Pixel 3a XL
- Pixel 7 Pro
- Pixel 8 Pro
- Bolt
- U Ultra
- Mate 20 X
- DuraSport 5G
- Fiesta 2 LTE
- Fiesta LTE
- G8S ThinQ
- Harmony
- Stylo 2 V
- Stylo 3
- Stylo 3 Plus Titan
- Stylo 4
- V20
- V50 ThinQ
- X charge
- X venture
- TR5
- TR7
- moto e4 plus
- moto g4
- moto z2
- moto z2 play
- moto z3
- McNally Road Explorer 5
- McNally TND 540
- Phone 2
- Galaxy A7
- Galaxy A7 (2017)
- Galaxy A7 (2018)
- Galaxy A8
- Galaxy A8 (2016)
- Galaxy A9 (2016)
- Galaxy A9 Pro (2016)
- Galaxy A9 (2018)
- Galaxy A15
- Galaxy A70
- Galaxy A80
- Galaxy A90 5G
- Galaxy C7
- Galaxy C7 Pro
- Galaxy C9 Pro
- Galaxy E7
- Galaxy Grand Neo Plus
- Galaxy J7
- Galaxy J7 Max
- Galaxy J7 V
- Galaxy Note 5
- Galaxy Note 10 Plus
- Galaxy Note20 Ultra
- Galaxy On7
- Galaxy S10 5G
- Galaxy S8
- Galaxy S8 Active
- Galaxy S21 5G
- Galaxy S21+ 5G
- Galaxy S21 Ultra 5G
- Galaxy S22 Ultra 5G
- Galaxy S23+
- Galaxy S23 Ultra
- Galaxy S24+
- Galaxy S24 Ultra
- Galaxy XCover7
- Mobile Rhino C6
- RS60
- Xperia C4
- Xperia L2
- Xperia XA Ultra
- Xperia XA1 Ultra
- Xperia XA2 Ultra
- Xperia XZ Premium
