RAM® Round Plate with Ball - C Size 38mm
Features

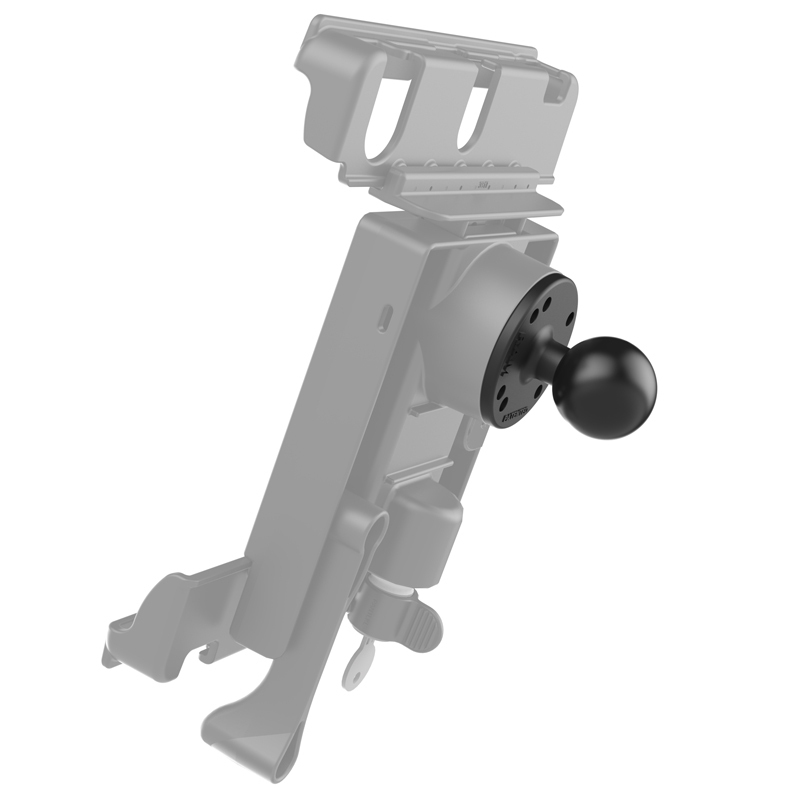

- 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern

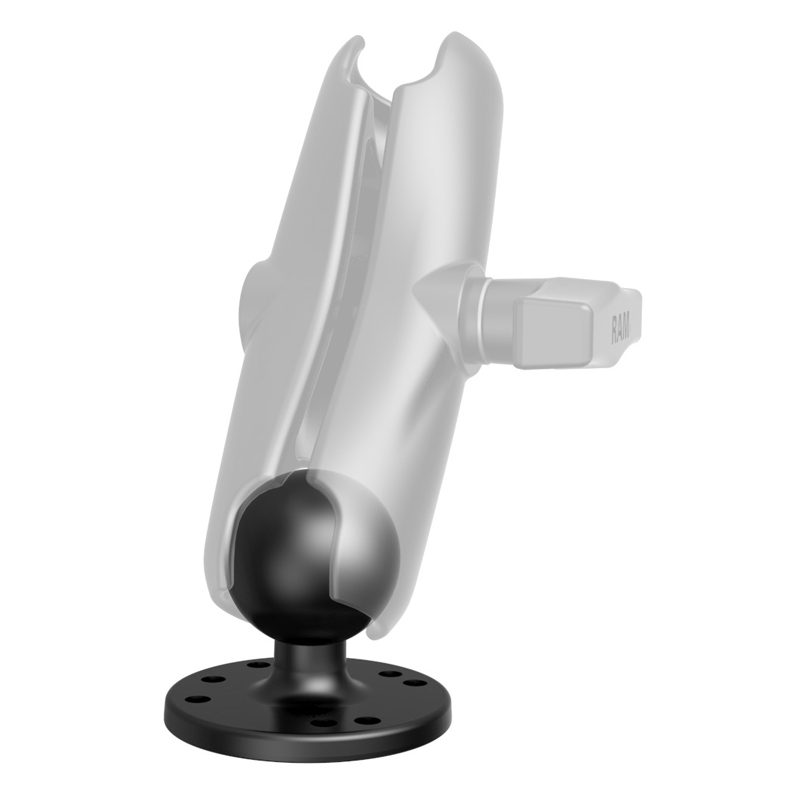

- Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Overview

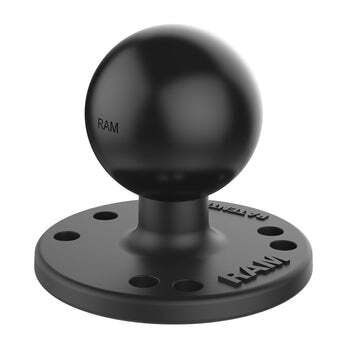

The RAM-202U consists of a 1.5" C size rubber ball connected to a 2.5" diameter round plate. This mounting component includes pre-drilled holes using the universal AMPS hole pattern.Round plate and 38mm rubberized ball only for ball and clamp system. Cast-aluminium.
-
What size screws are needed for the holes on this ball plate?
The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.
-
What is the height of the RAM-202U?
The overall height of the RAM-202U is 2.25".
Additional Information
| SKU | RAM-202U |
| Barcode # | 793442001239 |
| Brand | RAM Mounts |

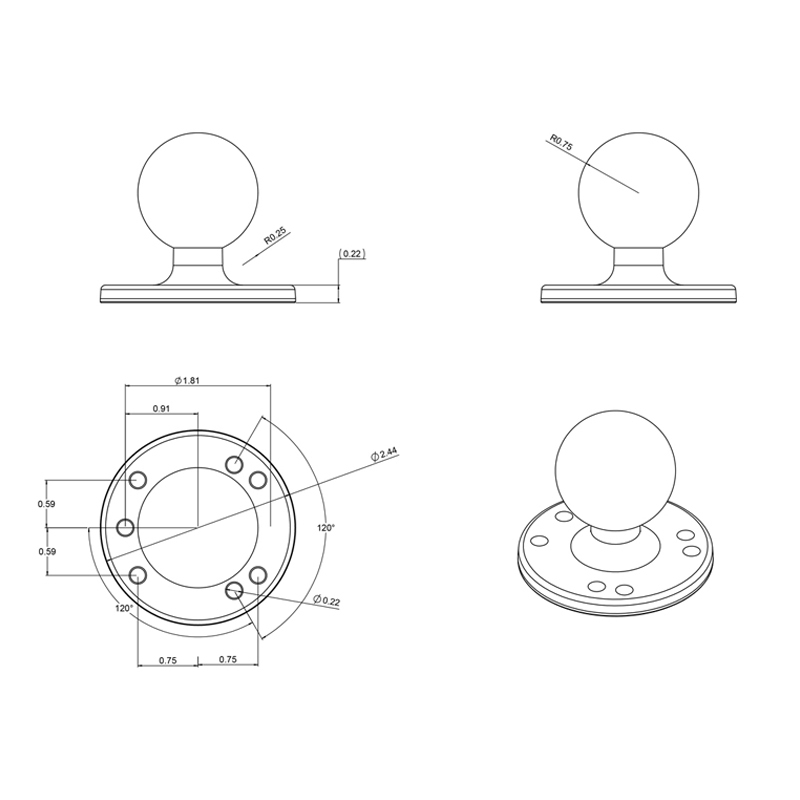

hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size
2.5" Diameter
ball size
C Size (1.5")
Compatibility
- HELIX 5 DI GPS
- ECHOMAP Plus 44cv
- ECHOMAP UHD2 6
- GPSMAP 440S
- Striker 4
- Striker Plus 4cv
- Striker Vivid 4cv
- 300 Series
- 500 Series
- HELIX 5
- HELIX 5 DI GPS
- ECHOMAP Plus 44cv
- HELIX 5 SI GPS KVD
- HELIX 5 Sonar GPS
- Elite-5 CHIRP
- Elite-5 HDI
- Elite-5 TI
- Elite-5M BAJA
- Elite-5X HDI
- Elite-7 Ti
- Elite-7 Ti2
- Hook Reveal 5
- HOOK2-4x
- HOOK2-5
- Aurora Black
- Surface Go
- Surface Go 2
- Aurora
- Aurora Black
- Surface Go
- Aurora Black
- Aurora Pro
- Aurora Sport
- echoMAP 43DV
- echoMAP 44DV
